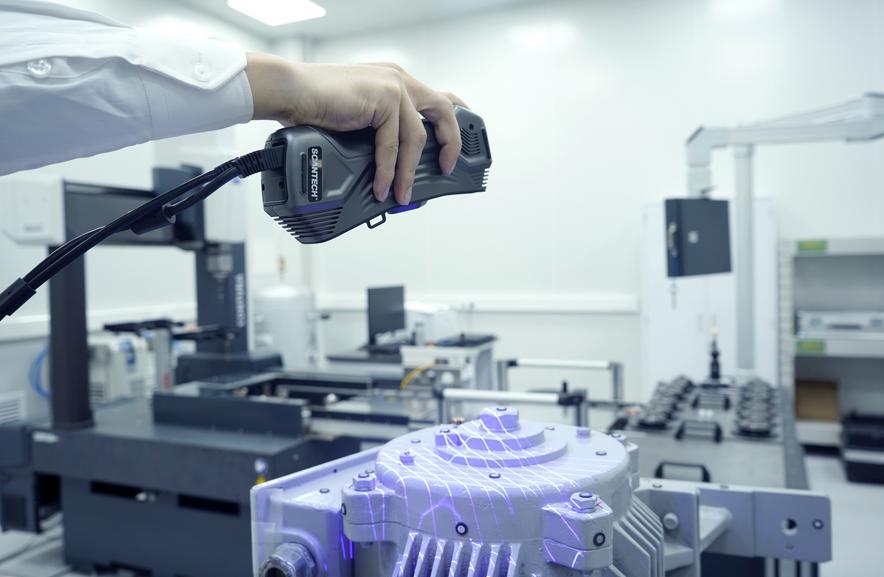

SIMSCAN Specifications:


Scan Mode:

  • Ultra-fast scanning: 11 blue laser crosses
  • Hyperfine scanning: 7 blue parallel laser
  • Deep hole scanning: 1 extra blue laser line

Laser lines in total: 30


Accuracy:

  • Up to 0.020 mm  (.0008 in)

Scanning rate:

  • Up to 2,020,000 Measurements/second

Scanning Area:

  • up to 410 mm x 400 mm ( 16.14 in x 15.75 in)

Laser Class:

  • Class II (eye safe)

Resolution:

  • Up to 0.025 mm ( .001 in)

Volumetric accuracy:

  • work alone: 0.020 mm +0.040 mm/m ((.0008 in + .0016 in/39.37 in)
  • with MSCAN-L15, 0.020 mm + 0.015 mm/m

Stand-off distance:

  • 300 mm   (11.81 in)

Depth of field:

  • 250 mm  (9.84 in)

Output formats:

  • .pj3,.pjs, .igs, .txt, .mk2, .umk, .stl, .ply, .obj

Operating temperature range:

  • 14F to 104F

Interface Mode:

  • USB 3.0

Dimensions:

  • 7.99 in x 3.15 in x 1.73 in

Weight:

  • 1.26 lbs
